Consolidated B-24J Liberator - 1:20 Scale

Built between 2016 and 2023. Built for the 467th Bomb Group Association.

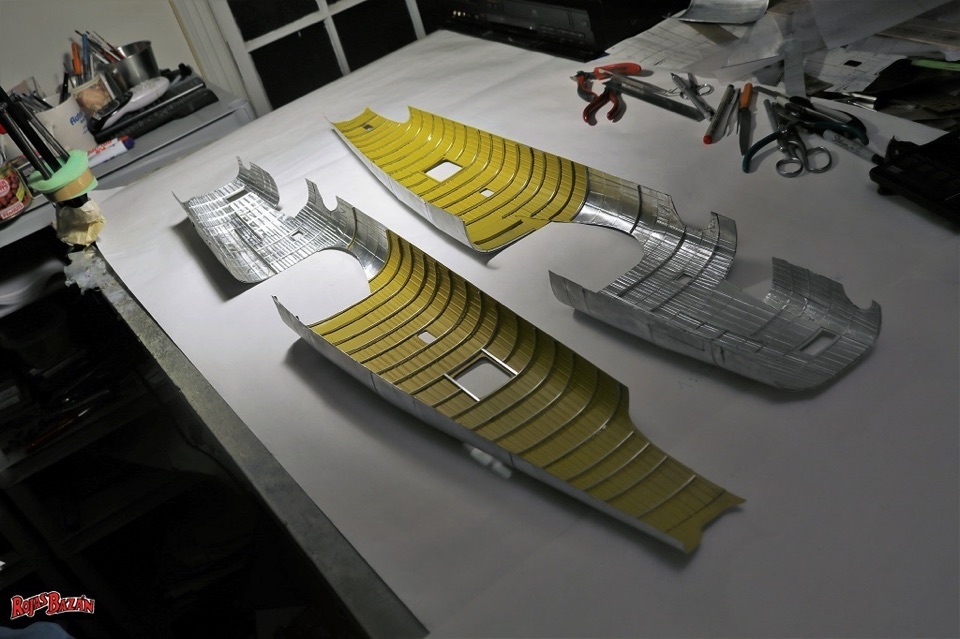

Fuselage halves. All aluminum construction. Handmade 1:20 scale

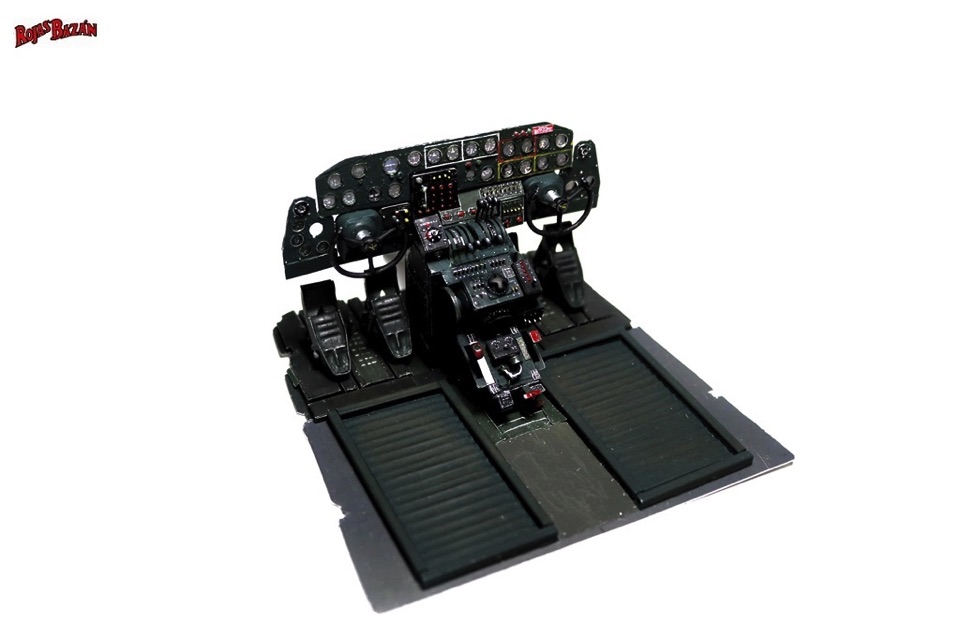

Pilot's instrument panel, control wheels, pedestal, rudder pedals, switches and throttles

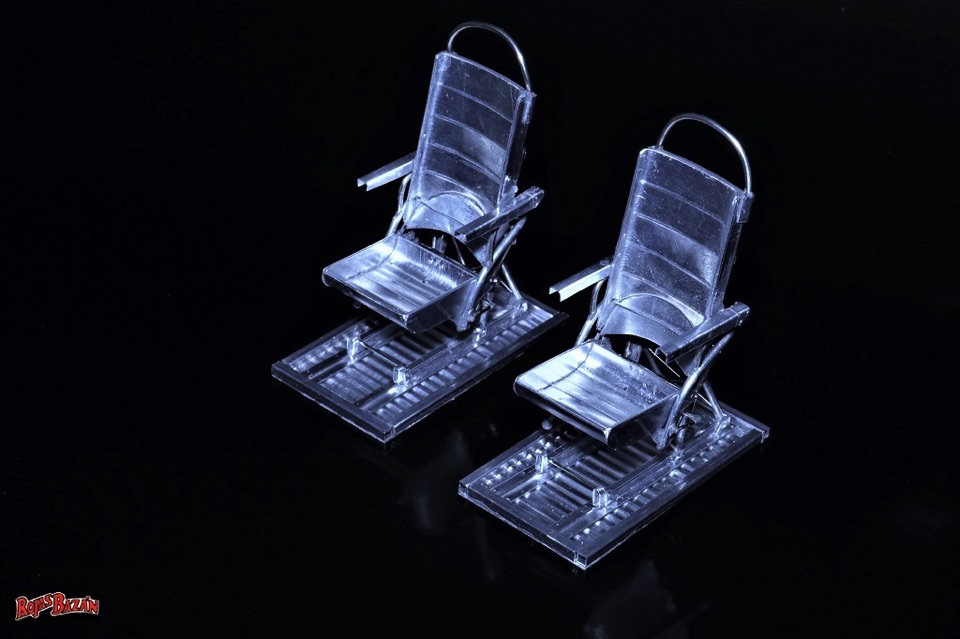

Pilots' aluminum seats before being painted

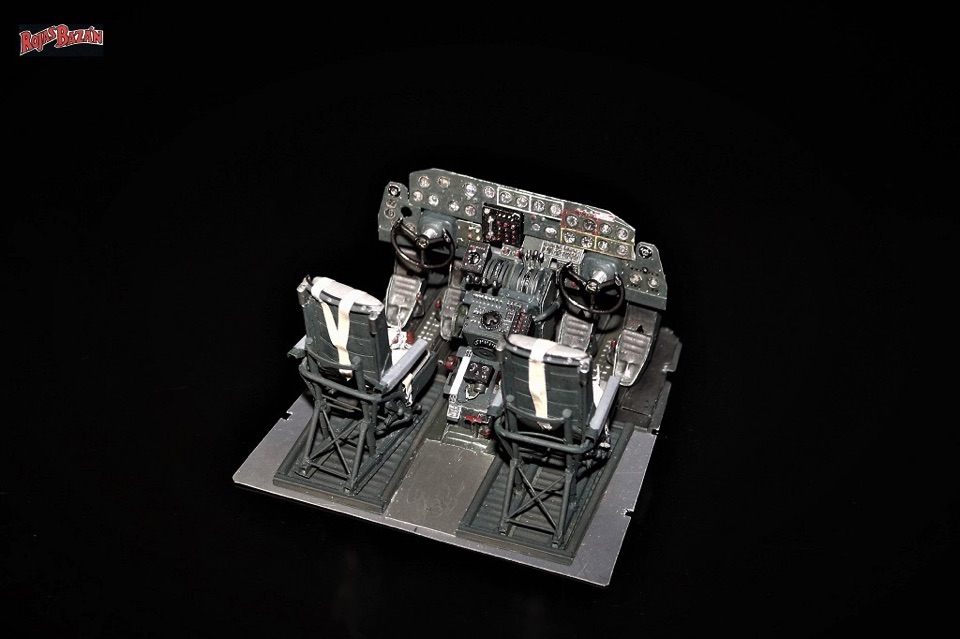

Pilots' deck. Instruments, controls and completed seats with straps

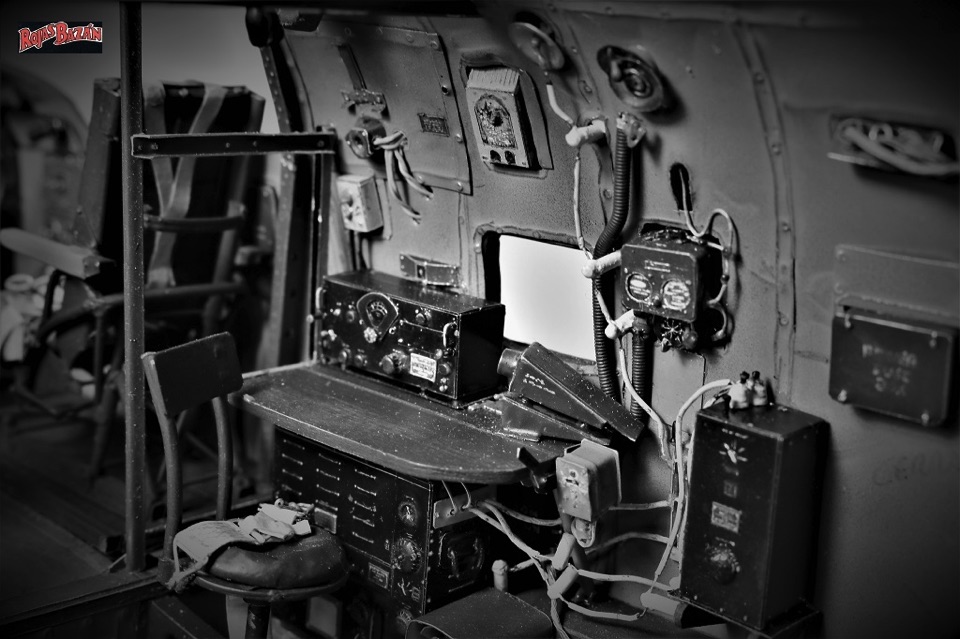

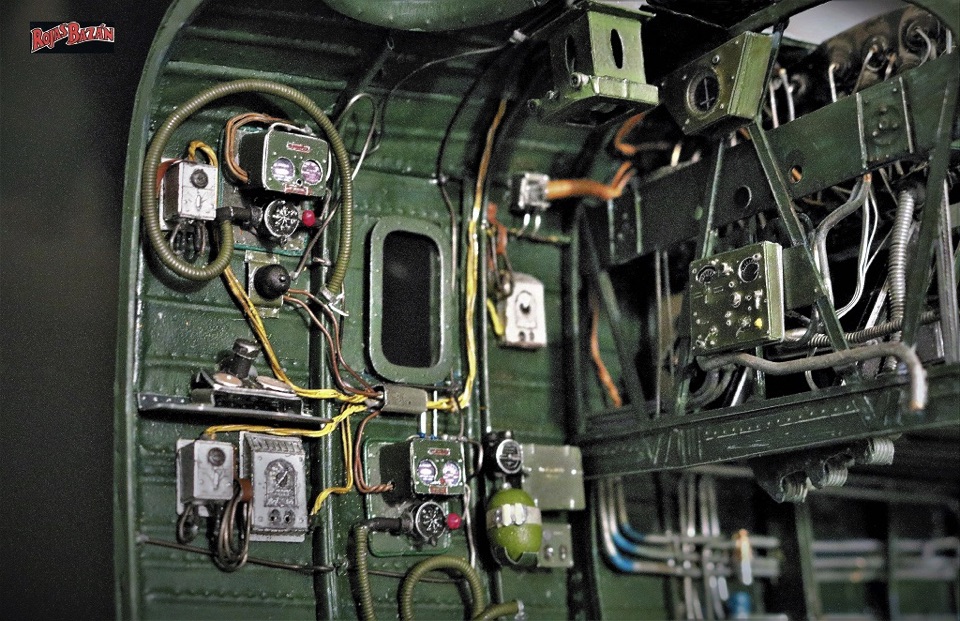

Radio operator station behind pilot's seats, starboard side. The cockpit and radio station were covered in soundproofing blankets

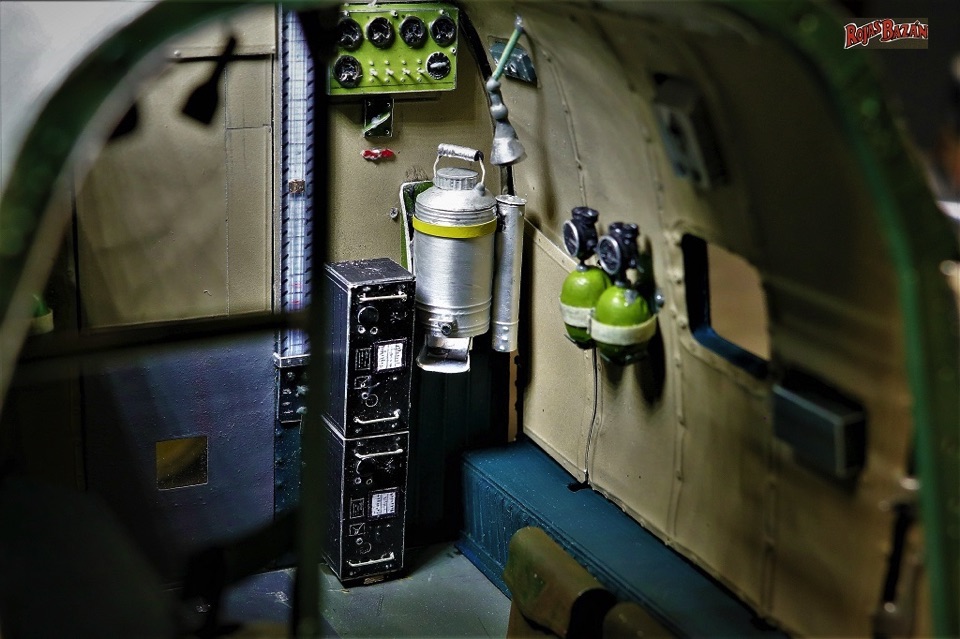

Radio operator station, port side

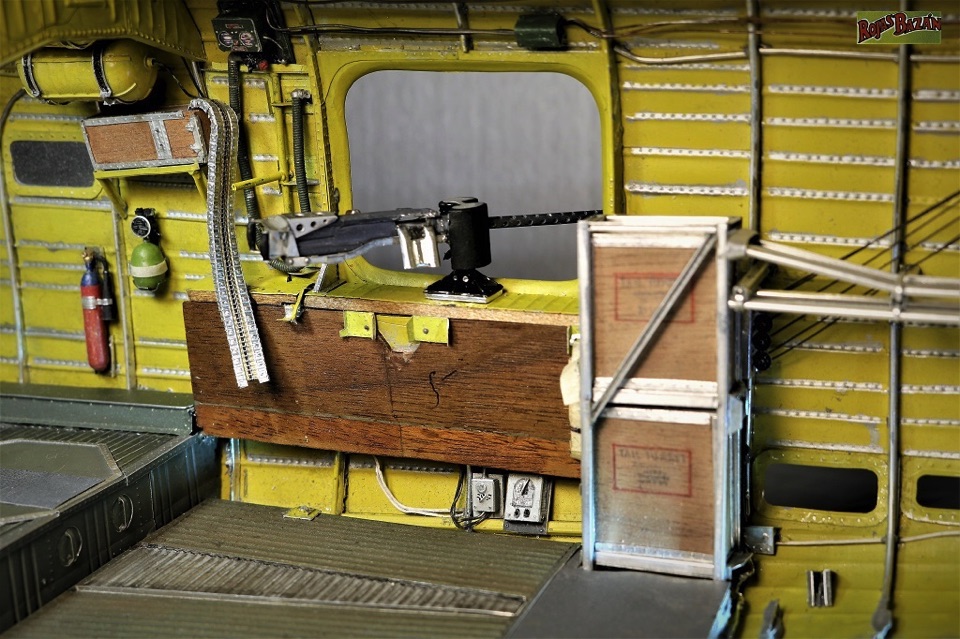

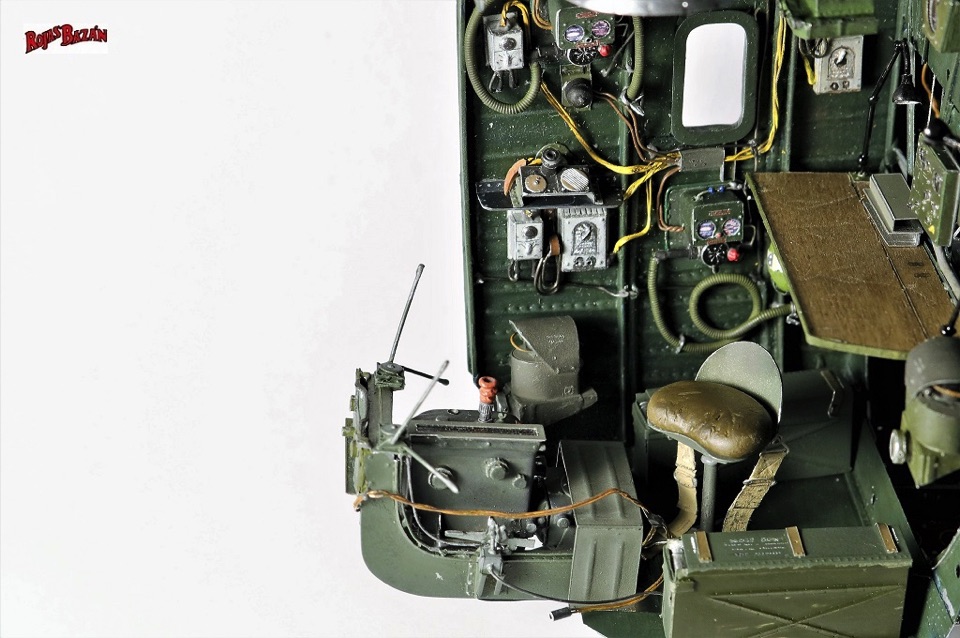

Waist station, startboard side. Mount-swivel gun army type K-7 used for panel enclosure

Radio equipment command deck compartment, starboard side

Navigator station, starboard side

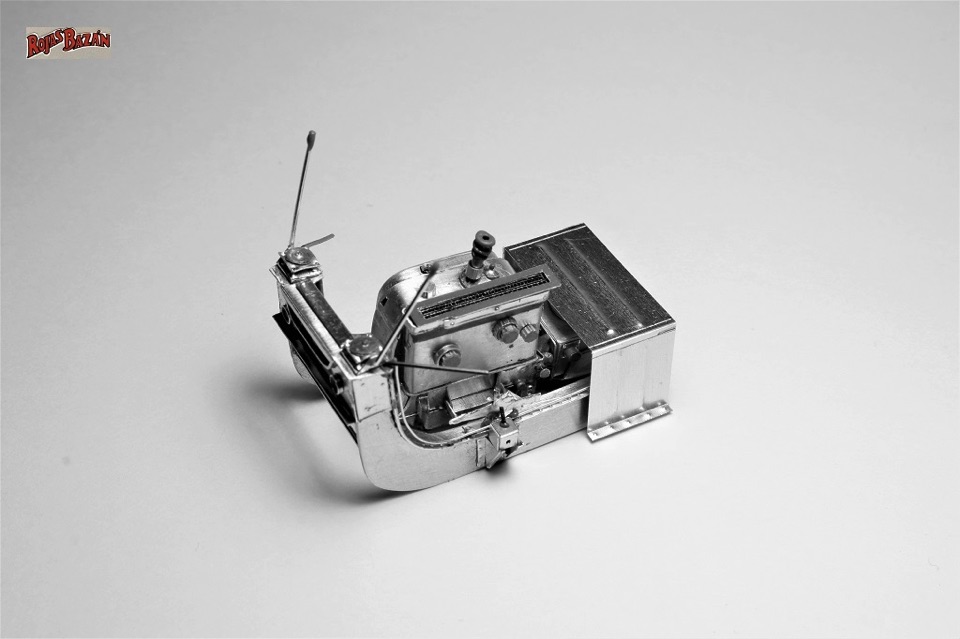

Sperry bombsight type S-1 M-2

Navigator's compartment with Sperry bombsight

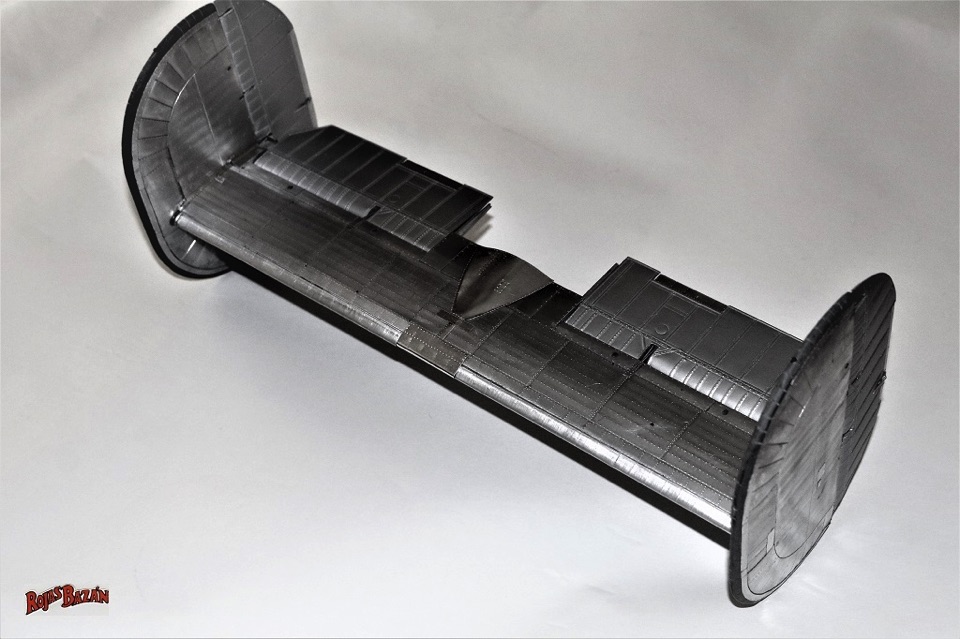

Tail group: fins, rudders, stabilizers and elevators

Cockpit roof with instruments

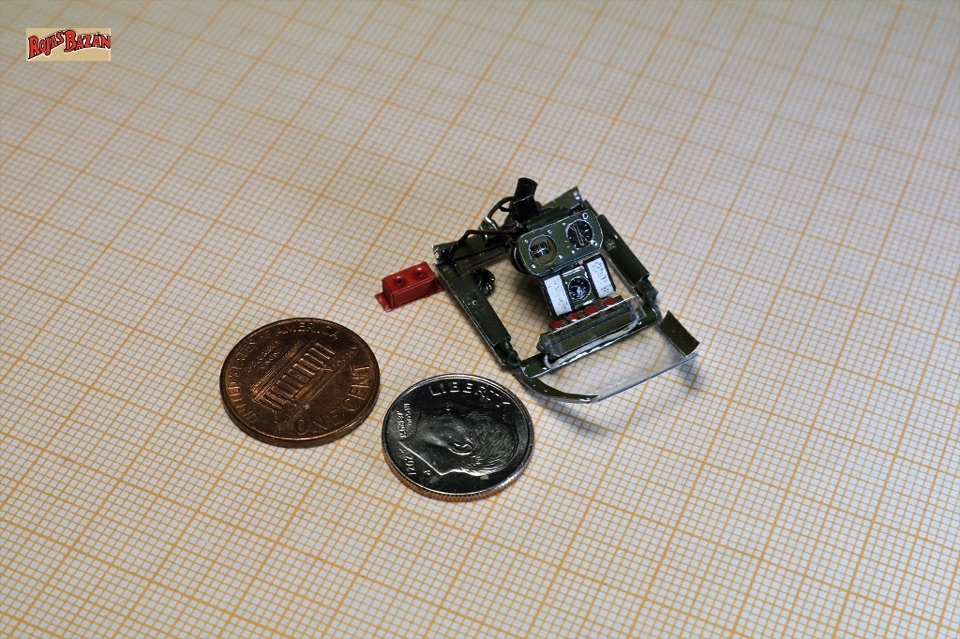

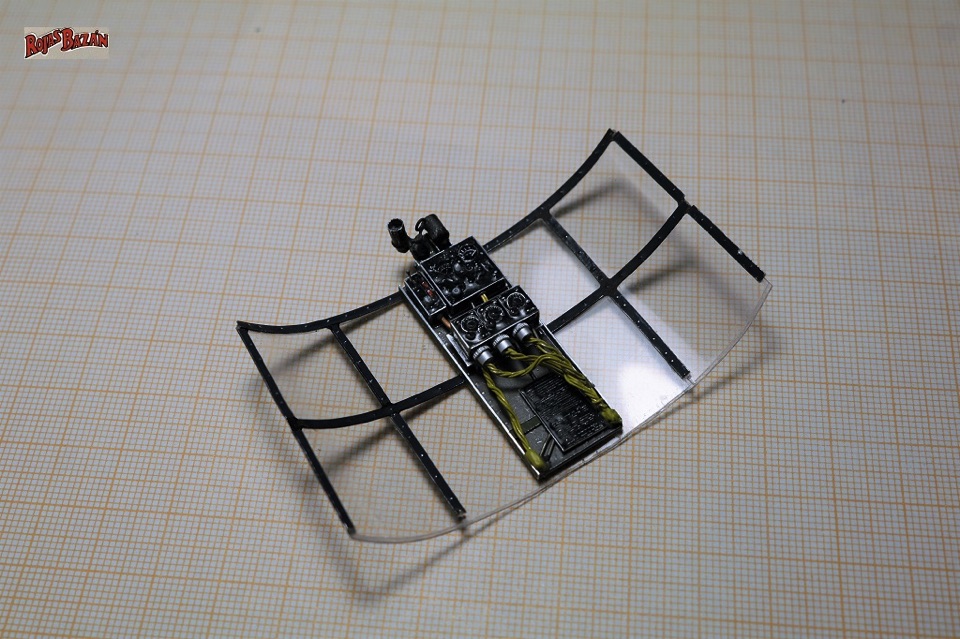

Windshield with miniature instruments over millimetric paper

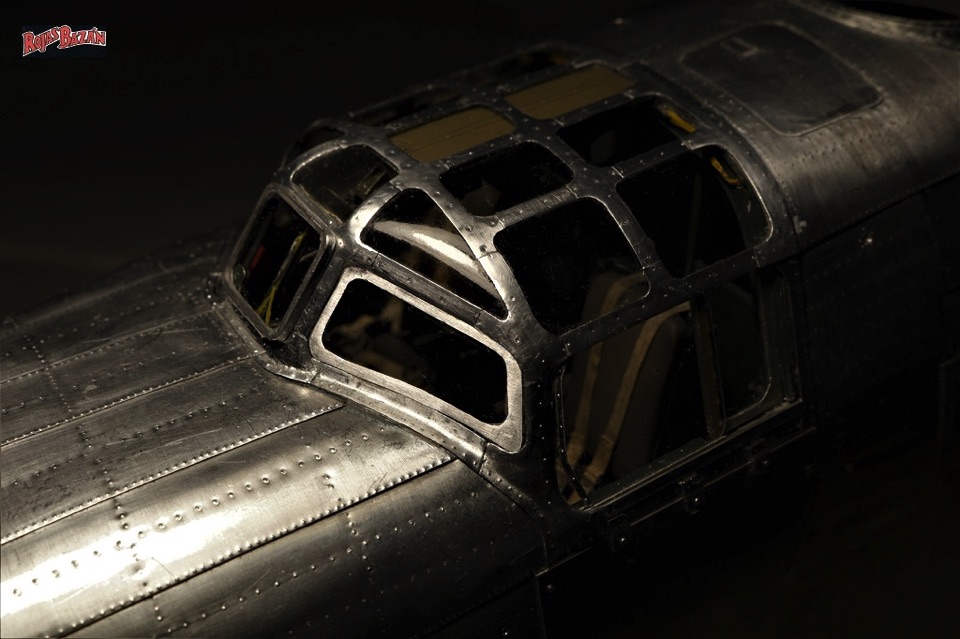

Completed canopy with armored windshield

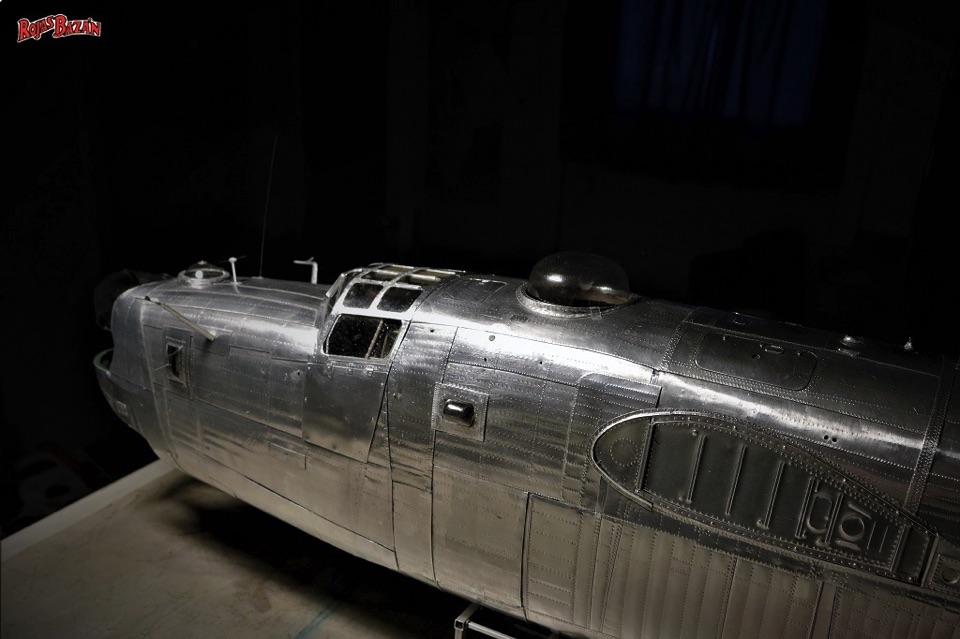

Fuselage ready for paint

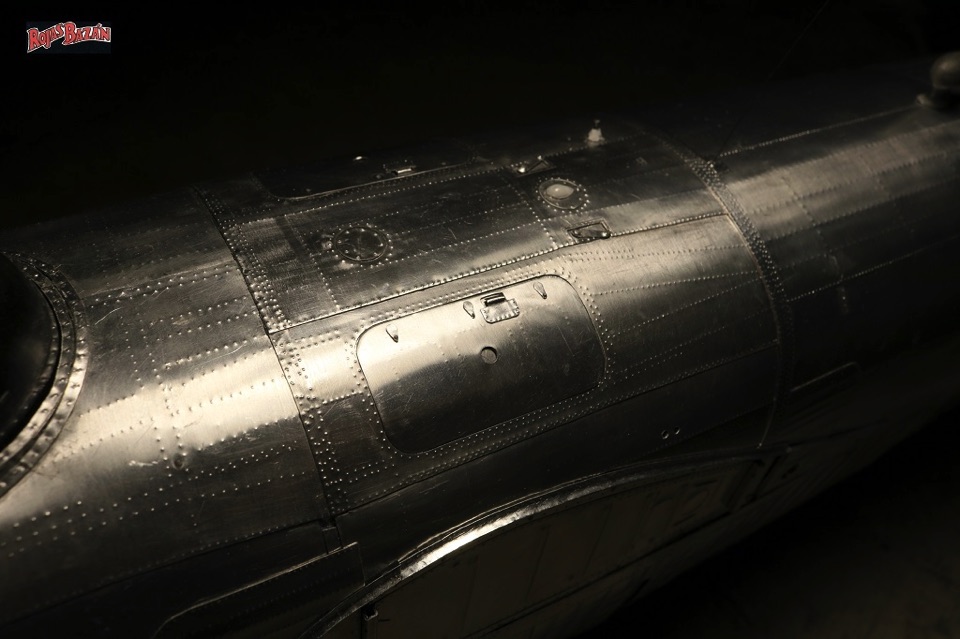

Inflatable dinghies compartment doors

Fuselage and tail group ready for paint

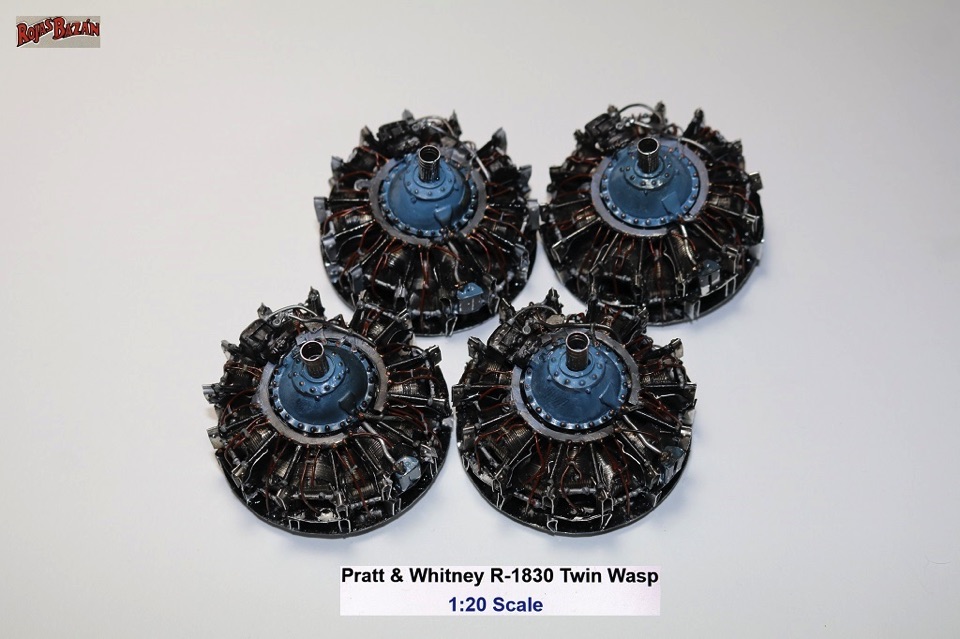

Pratt & Whitney R-1830 Twin Wasp. A total of 1600 little pieces were used for the construction of the four all-handmade 1:20 scale engines

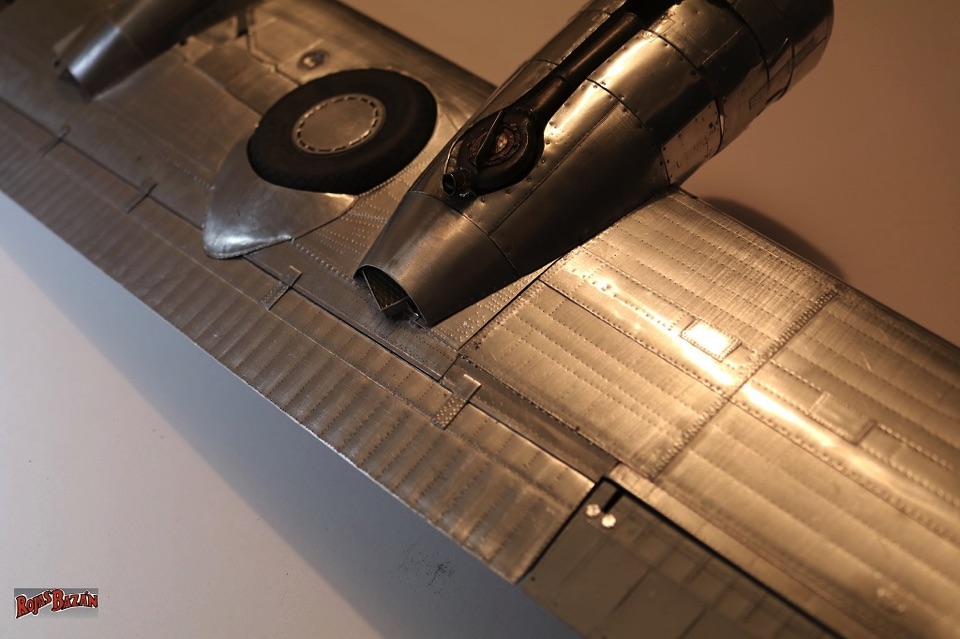

Port wing bottom. Supercharger under engine nacelle
